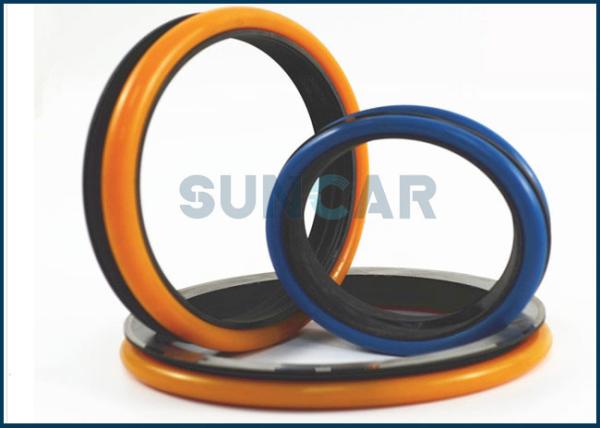

170-27-00010 1702700010 Floating Oil Seal Face Seals For Bulldozer KOMATSU D85 D31A

Description:This flaoting oil seal 170-27-00010 compatible for Bulldozer KOMATSU.The floating oil seal is composed of two identical

metal rings and two rubber rings.Floating oil seal operation bearing seal is mainly used in engineering machinery and under severe working

conditions and severe wear conditions. Including: mining machinery, crawler vehicles, such as: excavators, bulldozers, etc., conveyors, heavy

trucks, axles, tunnel shield machines, agricultural machinery. Practice has proved that floating oil seals are universal sealing rings for gearboxes,

mixers, mixers, wind power stations and other machinery with similar working conditions or requiring maintenance-free sealing.

Technical Parameters of Floating Oil Seal:

a. This kind of floating oil seal cannot work under the working conditions of maximum pressure and maximum speed at the same time.

b. Work pressure

Under normal operating conditions, this shaft oil seal does not bear pressure.

For example, if the sealing material is cast iron, the maximum pressure is 0.3MPa; when 100Cr6 material is used, the maximum pressure is

0.15MPa. The maximum pressure at rest is 0.5MPa. Excessive internal pressure will cause the seal ring or O-ring to deviate.

c. Speed

Cast iron: 3m/s (with lubriC-A-Ting oil)

100Cr6: 1m/s (with lubriC-A-Ting oil)

d, temperature

-40°C--+100°C, depending on the synthetic rubber material used.

e, lubriC-A-Tion, medium

LubriC-A-Tion has two important functions, so it is necessary under any circumstances. LubriC-A-Tion not only reduces the friction between the sealing

surface and the mating surface, but also acts as a coolant for the shaft and the sealing cavity.

Oil lubriC-A-Tion is a better way to reduce wear and extend service life. Although grease can also be used, special care must be taken. Grease can

only be used for slower speed appliC-A-Tions. When lubriC-A-Ting with oil, the oil level only needs to reach 1/2~1/3 of the inner diameter of the oil seal.

Relative Parts:

   Guangzhou Suncar Seals Co., Ltd. Is A Foreign Trade Company Specializing In The Wholesale And Retail Of Engineering

Machinery Seals, And Its Current Business Covers Many Regions At Home and Abroad. Over the years, We Have Focused on the Innovative

Research and Development of Manufacturing Processes, and Have highly Automated Production and Processing Base, Providing High-quality

Seals and Full Vehicle Accessories Kit for Excavators,Dozers ,Wheel and Other Equipment, Solving Engineering Machinery Maintenance

Problems.

    As A Leading Brand In The Export Trade Of Domestic Construction Machinery Seals, Suncar Not Only Has Advanced Manufacturing And

Processing Capabilities, But Also Has a Scientific Management System And a Complete After-sales System. The Business Area Has A

Management Center, Product Consulting, Logistics Distribution, Financial Management,Product AlloC-A-Tion And Other Services.

We Can Offer You Most of the Oil Seals for the Construction Machines like Excavators, Dozers, Backhoe Loaders, Wheel Loaders and etc.

Our Company Specialist In Spare Parts For Excavator Such Brand As:

Our Product As Follow:

Oil Seals

Our Different Type of Oil Seals

* Single Lip Oil Seal * double Lip Oil Seal * Shaft Oil Seal *

Our Different Types of Oil Seals

* SC Oil Seal * SB * TC * TB  * TCK * VC  VB*  KC * MKB * TCZ *  TCV *  TCN *  TC4 *  TB4

* TCJ *  KA3J *  DC *  DB *  MG *  WT * WTT *  OKC3 *  MOX *  MOD

Oil Seal -- TC TB TCV TCN DB DC DCY TC4Y ETC.

Piston Seal:

SPGW *  SPGW2 *  SPGWV *  SPGO *  SPGA *  OK *  NCF *  KDAS/DAS/TPM/ZW *  OUY

SPG * SPGM *  SPGN *  SPGC * OHM *  CPI * CPH * ODI * OSI *  OUIS *  OUHR * OKH *

Rod Seal:

IDI *  ISI * IUIS * IUH * UNI * PTB(SKF) * H605(HALLITE) * PTU *  SPNO

SPN * SPNS * SPNC * U-CUP *  TSE

Piston and rod seal:

UPI * USI * UPH * USH * V99F * V96H * UN * UHS * UNS

Back Up Ring :

BRT-PTFE * BRT-NYLON * BRT2 * BRT3 * BRT-G * BRT-P * BRN2 * BRN3

O Ring :

O-ring P series ; O-ring G series; O-ring AS series ; O-ring S series;

O-ring M 1.5 series; O-ring M 2.0 series; O-ring M 1.9series; O-ring M 2.4 series;

O-ring M 3.0 series; O-ring M4.0 series

D Ring : DRP , DRI

Dust Seal:

DKI * DWI * DWIR * DKBI * DKBI3 * DKBZ * DKH * HBTY * URE *

LPI * A1 * GHP * PPY * DLI * DLI2 * VAY *

DKB * GA * DSI * LBI * LBH * LBHK * DSPB * DHS * FA * HBY * HBTS *

Type A - Single Lip Wiper * Type B - Double Lip Wiper

Different AppliC-A-Tions of Oil Seal Kits

* Arm Oil Seal * Boom Oil Seal * Bucket Oil Seal * Dipper Oil Seal * Track Adjuster Oil Seal * Main pump Oil Seal * O Ring Oil Seal *

Back Lift Oil Seal * Lift Oil Seal * Steering Oil Seal * Loader Oil Seal * Excavator Oil Seal *

Break Oil Seal * Blade Oil Seal * Dump Oil Seal * Swing Oil Seal * Shaft Oil Seal *

HUB Oil Seal * gear box Oil Seal * etc

We provide wide range of replacement Oil seal repair kits consist of different sizes, type used by OEMs i.e. C-A-Terpillar Oil Seal * Komatsu Oil

Seal * Hitachi Oil Seal * JCB Oil Seal * Poclain Oil Seal *  and various other branded machines for the machines like

Loader Oil Seal * Excavator Oil Seal * Dozer Oil Seal Hub Oil Seal * Motor Oil Seal * Pump Oil Seal * Dumper Oil Seal *

Crane Oil Seal * Motor Grader Oil Seal and other machines Oil Seal used in Mines, Cement Industries, Coal Industries, Steel Industries,Sugar

industries & Oil Industries etc.
