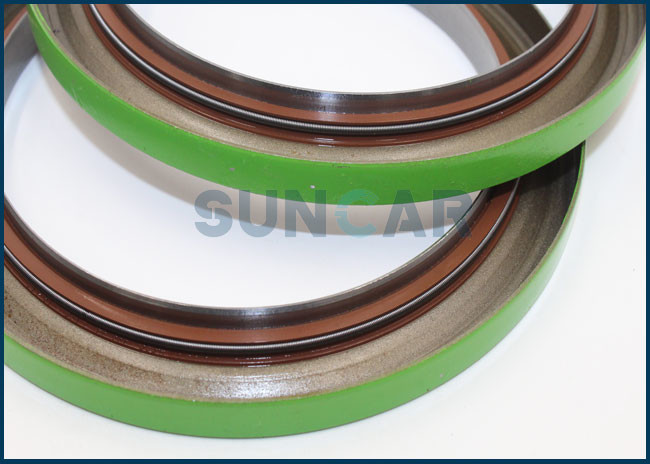

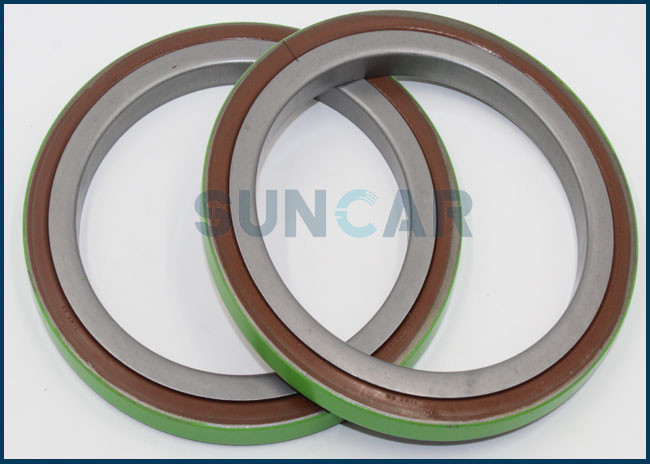

01031695B 7422468905 Differential Oil Seal Shaft Seal CORTECO
Description: Differential oil seal 01031695B,cross number is 7422468905.
Products Details :
| Product name | 01031695B 7422468905 Differential Oil Seal Shaft Seal CORTECO |
| Material | NBR |
| Part number | 01031695B 7422468905 |
| Temp. | -20~200°C |
| Relative sizes | Standard size |
| Relatice hot oil seals | TC ; TCK ; TN ; SC ; SB ; MG ; TCN ; KC ; KB ; TC4 ; TB4 ; OKC3 ; MOD ; MOX ; MOY ; VAJ ; TCJ ; SCN ; TCN2 etc. |
| Place original | Guangzhou,China |
| AppliC-A-Tion | All types of rotative appliC-A-Tions; Machine tools;Agriculture |
|
| Loading port | Huangpu port,China |
| Features | The resistance against oil and fuels is better than other types; The only highly elastic rubber whice is resistance to aromatci and
chlornated hydrocarbons; Exccllcent hC-A-T resistance; Exccllcent weather and ozonc resistance; Exccllcent acid resistance; Low swelling in water |
| Payment | L/C, D/A, D/P, T/T, Western Union, |
| Medium | Hydraulic oil, flame retardant liquid, water and others |
| Type | Hydraulic oil seal;combine oil seal |
The differential oil seal is also called the half shaft oil seal,
which is a device on the differential to prevent the leakage of
lubriC-A-Ting oil.
The differential oil seal includes an upper frame, a lower frame,
and a rubber covering body; the upper frame is in a convex shape
with oblique
shoulders in cross section, and the outer ring frame of the upper
frame is provided with an outer ring edge and an inner ring frame
at the bottom
The lower end is provided with an inner ring folded edge; the outer
ring frame of the upper frame and the inner ring frame are covered
with rubber
coverings; the upper frame is sleeved with a lower frame, and the
lower frame includes a straight tube Segment, slanted ring segment,
flat ring
segment; the rubber-coated body is provided with an upper ring
seat, a lower ring seat, a flex ring seat, and a double-wing
grooved ring in
sequence from the outside to the inside; the double-wing grooved
ring is a ring with The groove has a double lip structure; the
flexion ring seat is
provided with a sealing lip and a lip; the present model adopts a
sleeve structure of the upper convex frame and the lower L-shaped
frame, and is
covered with upper and lower rubber bodies, which are sealed by The
lip and the double-wing grooved ring are sealed by grease
lubriC-A-Tion,
which effectively prevents the rubber from aging and prolongs the
validity period of the seal and the service life of the
differential oil seal.
Our Other Relative Hot Sell Products:
Oil Seal
TC TB TCV TCN TCK VC DB DC DCY
TC4Y MG WT SC SB DC DB WT WTT
MOX MOD MOY TC4 TB4 KC KB TCJ VAJ
OKC3 OC QLFY etc.
Piston Seal:
SPGW SPGW2 SPGWV SPGO
SPGA OK NCF KDAS/DAS/TPM/ZW
SPG SPGM SPGN SPGC OHM CPI CPH
ODI OSI OUIS OUHR OK OUY etc.
Rod Seal
IDI , ISI , IUIS , IUH , UNI , PTB(SKF) , H605(HALLITE) ,
PTU(SUNCAR) , SPNO , SPN , SPNS , SPNC , U-CUP , TSE
Piston and rod seal:
UPI USI UPH USH
V99F V96H UN
UHS UNS
Back Up Ring :
BRT-PTFE , BRT-NYLON , BRT2 , BRT3 ,
BRT-G , BRT-P , BRN2 , BRN3
O Ring
O-ring P series ;
O-ring G series;
O-ring AS series ;
O-ring S series;
O-ring M 1.5 series;
O-ring M 2.0 series;
O-ring M 1.9series;
O-ring M 2.4 series;
O-ring M 3.0 series;
O-ring M4.0 series
D Ring : DRP , DRI
Dust Seal: DKI , DWI , DWIR, DKBI , DKBI3 , DKBZ , DKH , DKB , GA , DSI ,
LBI, LBH , LBHK , DSPB , DHS , FA , HBY ,HBTS , HBTY , URE
Type A - Single Lip Wiper
Type B - Double Lip Wiper
LPI , A1 , GHP , PPY , DLI , DLI2 , VAY
