708-7R-00052 7087R00052 Hydraulic Motor Assy For Komatsu Excavator
Swing Motor PC50UD-2 PC50UU-2 PC5OUUM-2
Description: This is a seal kit 708-7R-00052 7087R00052 for Excavator Komatsu
PC50UU-2; PC50UU-2E swing motor,which main function is seal oil;oil
resistance;long life use,easy install.Swing motors are hydraulic
motors that form the proper turning force of excavator booms using
oil pressure, shift rotation either to the right or left and convey
or cut off turning power.
Product name | 708-7R-00052 7087R00052 Hydraulic Motor Assy |
Brand | SUNCAR |
OEM number | 708-7R-00052 7087R00052 |
Part name | 708-7R-00052 Swing motor seal kit |
Color | As per standard color/customize color |
NBR | -30℃~+110℃ |
FKM | -10℃~+150℃ |
Feature | Resistant to heat, oil, fatigue, aging and friction |
Cross number | 708-7R-00050 |
Compatible model | Hydraulic Komatsu PC50UD-2 Excavators PC50UG-2 Excavators PC50UU-2 Excavators PC50UUM-2 Excavators |
Section code | Hydraulic swing motor |
Package | Nuetral packaging or OEM packaging |
Hardness | 75-90 degree |
AppliC-A-Tion | Resell,construction machinery works |
MOQ | 100 sets |
Type | Hydraulic motors |
Payment terms | L/C, D/A, D/P, T/T, Western Union, |
Market | The people in need |
Shipping mode | By air, by sea, by express |
Express | Post FedEx , UPS,DHL,TNT etc |
Loading port | Huangpu port,China |
Original place | Guangzhou city,Guangdong province,China |
Forwarder | Your local forwarder or we find for you |
Quality | Stable quality,OEM standard,Genuine/Aftermarket |
How To Place Order:
1. Inquiry
2. The sales made an inquiry to the sales manager
3. Reply
4. Business negotiation
5. Make a deal
6. Make payment
7. Receice payment
8. Warehouse department checking and packing the products
9. Delivery(Your forwarder or we find forwarder by expresss shipping)
10. You receiced the products
11. After-sale follow up service
12. Time to reorder

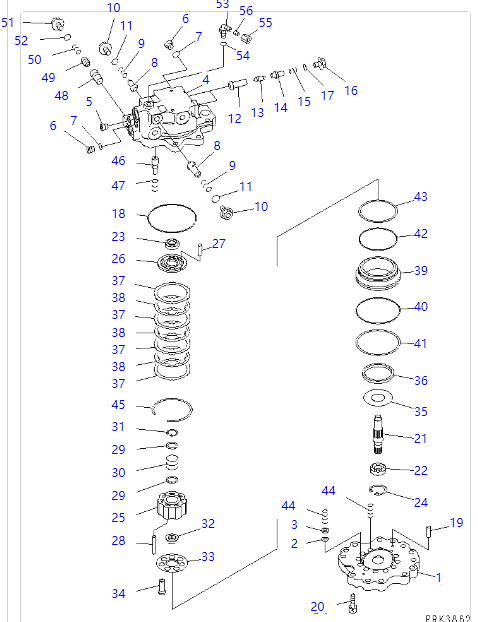

Relative Parts:
Pos. | Part No | Qty | Parts name |
708-7R-00190 | [1] | MOTOR ASSY | |
708-7R-00053 | [1] | MOTOR ASSY | |
708-7R-00052 | [1] | MOTOR ASSY | |
708-7R-01120 | [1] | MOTOR SUB ASSY | |
708-7R-01032 | [1] | MOTOR SUB ASSY | |
708-7R-01031 | [1] | MOTOR SUB ASSY | |
1 | 708-7R-11611 | [1] | PLATE,SWASH |
2 | 708-7R-11710 | [1] | WASHER |
3 | 708-7R-11720 | [1] | FILTER |
708-7R-04090 | [1] | HOUSING SUB ASSY | |
708-7R-04031 | [1] | HOUSING SUB ASSY | |
6 | 708-7R-11220 | [2] | PLUG |
7 | 07002-11223 | [2] | O-RING |
8 | 708-7R-11210 | [2] | VALVE |
9 | 722-10-91130 | [2] | SPRING |
10 | 709-32-12861 | [2] | PLUG |
11 | 07002-11823 | [2] | O-RING |
708-7R-03020 | [2] | VALVE SUB ASSY | |
12 | 708-7R-11230 | [1] | VALVE |
13 | 708-7R-11240 | [1] | POPPET |
14 | 708-7R-11250 | [1] | PLUG |
16 | 708-7R-11270 | [2] | PLUG |
18 | 07000-02125 | [1] | O-RING OEM |
19 | 720-68-19610 | [2] | PIN |
20 | 01252-61230 | [8] | BOLT |
21 | 708-7R-12111 | [1] | SHAFT |
22 | 708-7R-12140 | [1] | BEARING |
23 | 708-7R-12150 | [1] | BEARING |
24 | 04065-04218 | [1] | RING,SNAP |
25 | 708-7R-13111 | [1] | BLOCK,CYLINDER |
26 | 708-7R-13220 | [1] | PLATE,VALVE |
28 | 708-7R-13540 | [3] | PIN |
29 | 708-7R-13530 | [2] | WASHER |
30 | 708-7R-13560 | [1] | SPRING |
708-7R-13550 | [1] | SPRING | |
31 | 04065-03012 | [1] | RING |
32 | 708-7R-13510 | [1] | GUIDE,RETAINER |
33 | 708-7R-13340 | [1] | RETAINER,SHOE |
34 | 708-7R-13310 | [7] | PISTON SUB ASSY |
35 | 708-7R-13410 | [1] | PLATE,THRUST |
36 | 708-7R-13581 | [1] | SPACER |
708-7R-13570 | [1] | SPACER | |
37 | 708-7R-15130 | [4] | PLATE |
38 | 708-7R-15121 | [3] | DISC |
39 | 708-7R-15140 | [1] | PISTON,BRAKE |
40 | 07000-12110 | [1] | O-RING OEM |
41 | 708-7R-15170 | [1] | RING,BACK-UP |
42 | 07000-12095 | [1] | O-RING |
43 | 07001-02095 | [1] | RING,BACK-UP |
44 | 708-7R-15150 | [12] | SPRING |
45 | 708-7R-15160 | [1] | RING |
46 | 708-7R-15712 | [1] | PISTON |
47 | 708-7R-15722 | [1] | SPRING |
708-7R-03010 | [1] | VALVE SUB ASSY | |
50 | 708-7R-15670 | [1] | SPRING |
51 | 706-73-72680 | [1] | PLUG |
53. | 07235-10422 | [1] | ELBOW |
54. | 07002-12034 | [1] | O-RING |
55. | 07221-20422 | [1] | NUT,SLEEVE |
56. | 07222-00414 | [1] | PLUG |
![]() |
