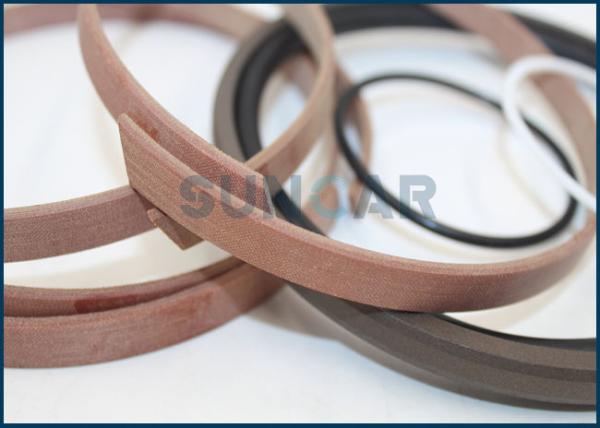

    2438U568R110 Piston Rod Seal Kit For KOBELCO K909-A Anti-oil Leak

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : Piston Rod Seal Kit For KOBELCO K909-A
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,
    Supply Ability : 550 Sets Per Week.
    Delivery Time : 3-7 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

    2438U568R110 Piston Rod Seal Kit For KOBELCO K909-A Anti-oil Leak

    2438U568R110 Piston Rod Seal Kit For KOBELCO K909-A Anti-oil Leak


    Description: Piston Rod Seal Kit For KOBELCO K909A use in cylinder


    Product name2438U568R110 Piston Rod Seal Kit For KOBELCO K909-A Anti-oil Leak
    Brand nameSUNCAR
    MOQ10 sets
    Fit brandKOBELCO
    Feuture

    Long life/Sealing performance/Wear resistance/High&low temperature resistence

    PaymentL/C, Paypal,T/T, Western Union, ,Bank Transfer
    PakingPP bag inside,carton box outside.
    Compatible equipment modelKOBELCO K909-A
    Supply ablity2200 sets per month
    Original placeGuangdong province,China
    Transport mode

    By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)

    CertifiC-A-Tion

    ISO9001

    Stock

    Have enough stock for selling
    Compatible EquipmentExcavator,weel loder,bulldozer
    Loading PortHuangpu,China
    Condition100% new

    Warranty

    6 months from the days of shippment
    Standard or not standard productsStandard products
    After sale serviceOnline support
    Part number2438U568R110

    Relatice Parts:

    Pos.Part NoQtyParts name
    . .2438U568F1[1]CYLINDER, BUCKET ASSY, CONSISTS OF THE FOLLOWING PARTS
    . .2438U568F2[1]BUCKET CYLINDER
    . .2438U568F3[1]CYLINDER, BUCKET ASSY, CONSISTS OF THE FOLLOWING PARTS
    . .2438U568F4[1]CYLINDER, BUCKET ASSY, CONSISTS OF THE FOLLOWING PARTS
    12438U568S1[1]TUBE
    22438U568S2[1]BUSHING
    32438U568S3[1]ROD
    42438U308S4[1]PISTON
    5R45P0049D3[1]SEAL
    6R45P0051D5[1]O-RING
    7R45T0014D4[4]WEAR RING
    8ZD12G06000[1]O-RING,59.40mm ID x 65.60mm OD x 3.10mm
    92438U568S9[2]BACK-UP RING
    102438U308S44[1]NUT
    112438U308S45[1]LOCKING RING
    122438U308S12[1]PLATE
    132438U568S13[1]SPRING
    142438U568S14[1]COVER
    152438U308S15[1]BUSHING
    162438U308S16[1]CLIP
    17ZD12P12000[2]O-RING
    182438U308S18[2]BACK-UP RING
    192438U308S39[1]O-RING
    20R45P0050D10[1]SEAL
    2145Z91D126[1]O-RING
    222438U322S33[1]PACKING
    232438U322S31[1]PLATE F1 ONLY
    242438U552S24[1]SEAL
    252438U568S25[1]BUSHING
    262438U282S23[1]SNAP RING
    27ZS23C14055[12]SCREW,Hex Socket Head, M14 x 55mm
    302445R138D6[2]SEAL,70mm ID x 85.3mm OD x 4mm Thk
    312445R138D7[2]SEAL,80mm ID x 95mm OD x 4mm Thk
    322438U568S32[1]SPRING F3 & F4 ONLY
    332438U568S33[1]MANIFOLD PISTON, F3 & F4 ONLY
    342438U568S34[1]PLATE F3 ONLY
    352438U568S35[1]PLATE F4 ONLY
    . .2438U568R100[1]REPAIR KIT
    . .2438U568R110[1]REPAIR KIT
