CA1P7249 1P-7249 1P7249 Seal Group Floating Seal Fits C-A-T Tractor D3 D3B

Ask Lasest Price
Brand Name :	SUNCAR
Model Number :	Face seal 1P7249
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, Paypal,Bank Transfer
Supply Ability :	550 Sets Per Week.
Delivery Time :	3-7 Days After Payment Received(Public Holiday Excluded)

Add to Cart

Product Details
Company Profile

CA1P7249 1P-7249 1P7249 Seal Group Floating Seal Fits C-A-T Tractor D3 D3B

CA1P7249 1P-7249 1P7249 Seal Group Floating Seal Fits C-A-T Tractor D3 D3B

Description:Flaoting seal is a kind of mechanical seal,also called face seal.Advantages of Mechanical Face Seals:

· High reliability

· Cost effective sealing against external (dirt, sand, water) and internal (oil, grease) media

· Long service life with no maintenance required

· Easy assembly

· Self-centering, compensating for shaft misalignment and eccentricity

Product name	CA1P7249 1P-7249 1P7249 Seal Group Fits C-A-T For D3,D3B
Brand	SUNCAR
Part number	1P-7249
Part number	1P7249
Part number	CA1P7249
Feature	Higher-toughness/Wear resistance/Durability
Paking details	PP bag inside,carton box outside.
Supply ability	2200 sets per month
Transport	By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)
Original place	Guangdong provice,China
Loading port	Huangpu port,China
Avaliability	In stock
Compatible model	Excavator E225 Pipelayer 583K 594 594H Track Loader 931 Track-type Tractor D3 D8H D8k D9G D9H Wheel Scraper 623B C-A-Terpillar
CertifiC-A-Tion	ISO9001
Payment ways	Western Union, L/C, T/T, Bank transfer,Paypal
Delivery details	3-7 days after payment received(Public Holiday Excluded)
MOQ	10 sets
Type	Floating seal

SpecifiC-A-Tions of Metal ring:

Material	Gcr15/ 100Cr6	Cast 15Cr3Mo
Surface smoothness/Roughness	≤Ra0.2μm	6.3-12.5μm
Work face smoothness	≤Ra0.015μm	≤Ra0.1μm
Pressure loading	≤0.15MPa	≤0.3 MPa
Forging line speed	2m/s	3m/s
Temperature range	—100~200℃	-40~160°C
Hardness(HRC)	58-62	60-68
Lifetime(Hours)	3000	5000
SpecifiC-A-Tions of rubber ring
Material	NBR	SILICONE	FKM
Hardness	60°~ 65°	60°~ 65°	72°~ 78°
Minimum tensile strength	11MPa	10.6Mpa	11MPa
Minimum elongation at break	300%	400%	260%
Permanent deformation	12%	8%	25%
Temperature range	-40℃- +120℃	-49℃- +230℃	-30℃- +250℃

Product Feuture:

• One set consist of a pair of matel seal rings and a pair of rubber rings
• Matel material could be forge steel or casting steel for different needs.
• Excellent durability and flexibility in using.
• Specially designed cords enhance durability and length stability.
• Excellent in resistance against heat,oil and wear.
• Show stable in high speed rotation.
• Large power, long service life, small distortion, less space occupying

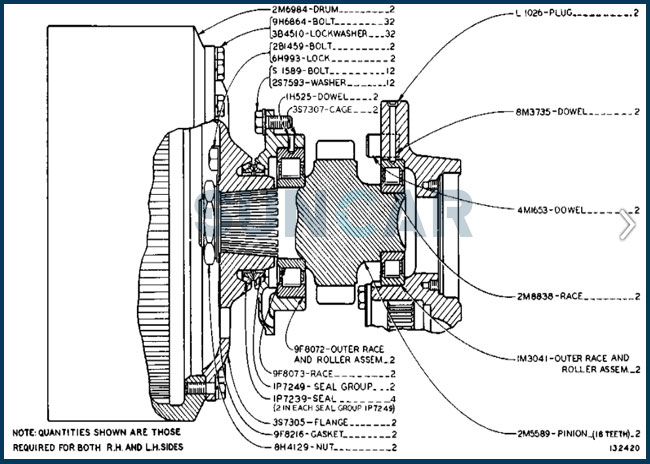

Parts for your 594 Pipelayer:

Part No	Qty	Parts name
2M-6984	[2]	DRUM
9H-6864	[32]	BOLT
3B-4510	[32]	LOCKWASHER
2B-1459	[2]	BOLT
6H-0993	[2]	LOCK
0S-1589	[12]	BOLT
2S-7593	[12]	WASHER
1H-0525	[2]	DOWEL
3S-7307	[2]	CAGE
9F-8072	[2]	OUTER RACE AND ROLLER ASSEM.
9F-8073	[2]	RACE
1P-7249	[2]	SEAL GROUP
1P-7239	[4]	SEAL
		(2 IN EACH SEAL GROUP 1P7249)
3S-7305	[2]	FLANGE
9F-8216	[2]	GASKET
8H-4129	[2]	NUT
0L-1026	[2]	PLUG
8M-3735	[2]	DOWEL
4M-1653	[2]	DOWEL
2M-8838	[2]	RACE
1M-3041	[2]	OUTER RACE AND ROLLER ASSEM.
2M-5589	[2]	PINION (18 TEETH)

CA1P7249 1P-7249 1P7249 Seal Group Floating Seal Fits C-A-T Tractor D3 D3B
