Brand Name : | SUNCAR |
Model Number : | OUHR Hydraulic Piston Seal |
Price : | Negotiable |
Payment Terms : | L/C, D/A, D/P, T/T, Paypal,Western Union, |
Supply Ability : | 550 Sets Per Week. |
Delivery Time : | 3-7 days after payment received(Public Holiday Excluded) |

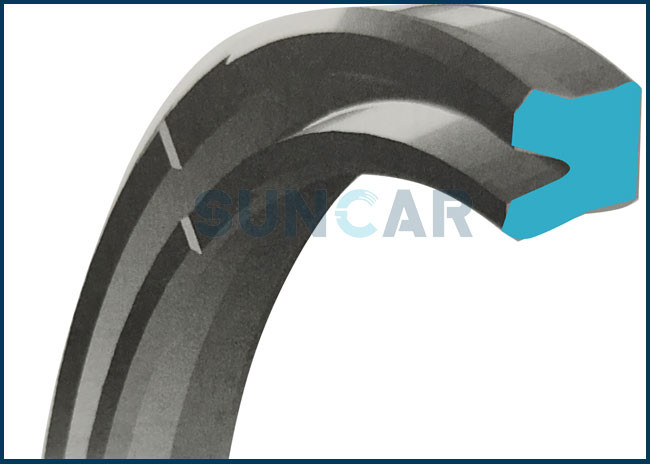

OUHR Piston Seal Cylinder Shaft Seals
The OUHR type is a special combination seal ring for pistons,which consists of PTFE sealing ring and rectangular rubber ring for the two-way sealing of the piston of the hydraulic cylinder. PTFE sealing ring has excellent friction coefficient, abrasion resistance, extrusion resistance, high-temperature resistance, and corrosion resistance.
Special seals for piston sealing:
ODI OSI OUIS OUHR SPG SPGW SPGO SPGC SPGI CPI CPH .......
D | d | h | C |
32 | 24 | 5 | 3.5 |
40 | 30 | 6 | |
50 | 40 | ||
55 | 45 | ||
60 | 50 | ||
63 | 53 | ||
65 | 55 | ||
70 | 60 | ||
75 | 62 | 7.5 | 4.5 |
80 | 65 | 9 | |
71 | 6 | ||
85 | 70 | 9 | |
95 | 80 | ||
100 | 85 | ||
110 | 95 | ||
115 | 100 | ||
125 | 110 | ||
125 | 112 | 8.5 | |
130 | 115 | ||
140 | 125 | 9 | |
150 | 136 | 8.5 | |
160 | 145 | 9 | |
180 | 165 | ||
200 | 180 | 12 | 5.5 |
224 | 204 | ||
250 | 230 |
Some OEM No. Here For Your Reference:
Standard (A505) | (A567) | 19YF |
CU2683Q2 | CU2683Q3 | GN5727V0 |
CU2684Q3 | CU2684Q5 | GN4794V0 |
CU2604Q3 | CU2604Q4 | GN4050V0 |
CU2697Q1 | GN4804V0 | |
CU2696Q2 | CU2696Q3 | GN4335V0 |
CU2685Q0 | CU2685Q4 | GN4693V0 |
CU2930Q2 | CU2930Q3 | GN4810V0 |
CU2634Q2 | GN4676V0 | |
CU2943Q2 | CU2943Q3 | GN5712V0 |
CU2666Q2 | CU2666Q3 | GN4549V0 |
CU3238Q1 | GN4818V0 | |
CU0977Q2 | CU0977Q3 | GN4876V0 |
CU2605Q2 | CU2605Q4 | GN5023V0 |
CU2669Q2 | CU2669Q3 | GN4687V0 |
CU2607Q2 | CU2607Q3 | GN4822V0 |
CU3241Q2 | GN4512V0 | |
CU2670Q2 | GN4480V0 | |
CU3492Q0 | CU2691Q3 | GN4827V0 |
CU2609Q2 | CU2609Q3 | GN4593V0 |
CU2647Q3 | CU2647Q2 | GN4481V0 |
CU3244Q1 | CU1539Q2 | GN4830V0 |
CU2687Q1 | GN4551V0 | |
CU2688Q1 | GN4836V0 | |
CU1539Q1 | GN4470V0 | |
CU3491Q0 | GN4842V0 | |
CU2691Q2 | GN4635V0 |
Products are widely used in the fields of national defense, machinery, navigation, aviation, automobiles, textiles, medicine and food.
Our company adopts a warehouse-style business model, maintains a large amount of inventory all year round, batches and retails concurrently, has its own professional team, gathers the best quality seals, and truly is a one-stop service provider.
