SPN Hydraulic Rod Seal

Ask Lasest Price
Brand Name :	SUNCAR
Model Number :	SPN Type Rod Seal
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union,
Supply Ability :	550 Sets Per Week.
Delivery Time :	3-7 days after payment received(Public Holiday Excluded)
MOQ :	100 Pcs/ Trial order is avaliable

Add to Cart

Product Details
Company Profile

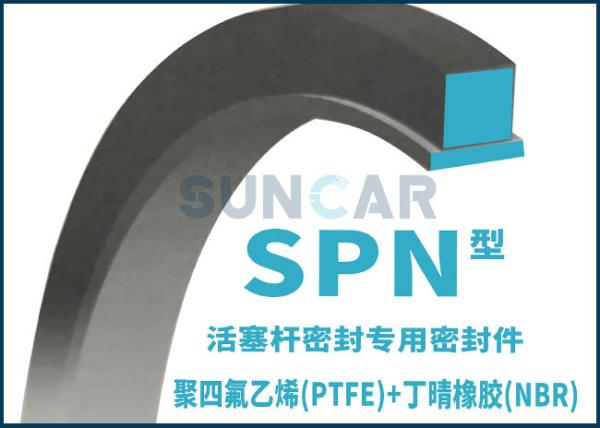

SPN Hydraulic Rod Seal

SPN Hydraulic Rod Seal

SPN Seals Are Especially Suitable For Controlling Cylinder Servo Systems, MachineTools, Cylinder Quick Response And Construction Equipment, and Two-way Piston Rod Cylinders. This Fller Has Low Frictional Resistance, Which Eliminates Stick-slip And Ensures High Wear Resistance. When The Service Range Of Stress Is Used, Wide And Fast Sliding Speed.

SPN’s Sealing Ring Has High Shemical Resistance And Corrosion Resistance. O-rings And Sealing Rings Of Different Materials Can Be Used. SPN sealing ring can be applied to almost all media. Since the special shape of the sealing structure has good film properties, it can be returned to the oil.

ID	OD	H	ID	OD	H
18	27	4.3	80	90	5.9
20	29	4.3	90	103.4	7.3
22	31	4.3	90	100	4
27	36	4.3	90	100	4.9
31.5	40.5	4.3	90	101	5.9
47	60	7.3	95	105	4.9
50	60	4.9	100	113.4	7.3
53	66	7.3	100	110	4
60	73	7.3	100	110	4.9
60	670	4.6	105	118.4	7.3
65	78	7.3	105	115	4.6
70	83	7.3	110	120	4.9
70	80	4	110	123.4	7.3
70	80	4.9	120	133.4	7.3
75	88	7.3	120	130	4.9
80	93	7.3	125	135	4.9
80	90	4	130	143.4	7.3
80	90	4.9	140	153.4	7.3

Some OEM NO of SPN Rod Seals For Your Reference:

GS2308V0	GS2301V0	31E6-40500
K9001017	GS2302V0	GS2315V0
GS2309V0	GS2303V0	K9001016
GS2310V0	GS2304V0	20G-30-K2310
GS2313V0	GS2305V0	GS2316V0
GS2314V0	GS2306V0	GS2317V0
GS2311V0	20G-30-K2290	31N6-40990
GS2312V0	GS2307V0	31Q6-40960
GS2318V0	GS2319V0

Material

Elastomer

slide ring

Standard

NBR

PTFE-Bronze

Standard(on request)

FKM

PTFE-carbon

pressure

160bar

250bar

400bar

Max Gap E

E≤0.6mm

E≤0.4mm

E≤0.2mm

Advantages:

Suitable for one-piece cylinders.

Small size installation.

Very small start-up and motion friction, ensuring smooth movement even at low.

Speeds, no creeping phenomenon.

Abrasion, Anti squeeze.

Optional high temperature materials.
