SPNO Rod Seal Leakproof

Ask Lasest Price
Brand Name :	SUNCAR
Model Number :	SPNO Type Piston Rod Seal
Price :	Negotiable
Payment Terms :	Paypal ,T/T, Western Union,
Supply Ability :	550 Pcs Per Week.
Delivery Time :	3-7 days after payment received(Public Holiday Excluded)
MOQ :	100 pcs/Accept trail order

Add to Cart

Product Details
Company Profile

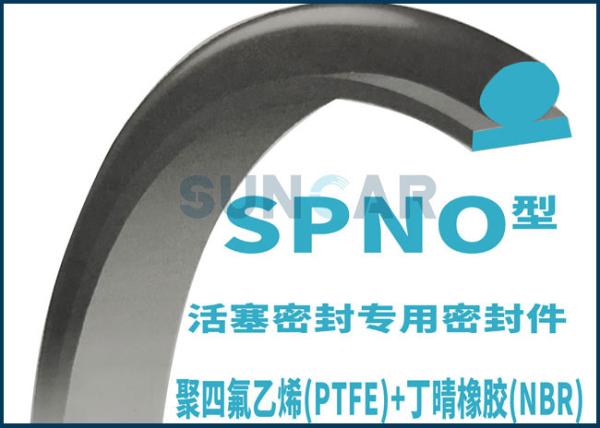

SPNO Rod Seal Leakproof

SPNO Rod Seal Leakproof

SPNO type hydraulic seal is a relatively soft, non-metallic ring that is captured in a groove or fixed in a combination of rings to form a seal assembly to prevent or separate fluids in reciproC-A-Ting appliC-A-Tions. Hydraulic sealing is essential in machinery. Their use is critical to providing a way to convert fluid dynamics into linear motion.

ID	OD	H	ID	OD	H
12	18	3	130	145	6.3
14	20	3	135	150	6.3
16	22	3	140	155	6.3
18	24	3	145	160	6.3
20	26	3	150	170	9.8
22	31	3.8	160	180	9.8
25	34	3.8	170	190	9.8
28	37	3.8	180	200	9.8
30	39	3.8	190	210	9.8
32	41	3.8	200	220	9.8
36	45	3.8	210	230	9.8
40	49	3.8	220	240	9.8
45	54	3.8	224	244	9.8
50	65	6.3	230	250	9.8
56	71	6.3	240	260	9.8
60	75	6.3	250	270	9.8
63	78	6.3	260	280	9.8
70	85	6.3	270	290	9.8
70	90	6.3	280	300	9.8
80	95	6.3	290	310	9.8
85	100	6.3	300	320	9.8
90	105	6.3	310	350	9.8
95	110	6.3	320	340	9.8
100	115	6.3	330	350	9.8
105	120	6.3	340	360	9.8
110	125	6.3	350	370	9.8
115	130	6.3	360	380	9.8
120	135	6.3	370	390	9.8
125	140	6.3	380	400	9.8

Some Oem No. of SPNO For Your Reference:

GS2800V0	GS2812V0	GS2824V0	GS2836V0	GS2847V0
GS2801V0	GS2813V0	GS2825V0	GS2837V0	GS2848V0
GS2802V0	GS2814V0	GS2826V0	GS2838V0	GS2849V0
GS2803V0	GS2815V0	GS2827V0	GS2839V0	GS2850V0
GS2804V0	GS2816V0	GS2828V0	GS2840V0	GS2851V0
GS2805V0	GS2817V0	GS2829V0	GS2841V0	GS2852V0
GS2806V0	GS2818V0	GS2830V0	GS2842V0	GS2853V0
GS2807V0	GS2819V0	GS2831V0	GS2843V0	GS2854V0
GS2808V0	GS2820V0	GS2832V0	GS2844V0	GS2855V0
GS2809V0	GS2821V0	GS2833V0	GS2845V0	GS2856V0
GS2810V0	GS2822V0	GS2834V0	GS2846V0	GS2857V0
GS2811V0	GS2823V0	GS2835V0

Advantages:

Easy to install.
Low permanent compression.
Adapt to harsh working conditions.
High resistance to extrusion.
Excellent wear resistance.
Anti-impact load and pressure peak are not sensitive.
Airmail Economy:cheap method fo inexpensive items

◆◆ PTFE, nbr / fkm rubber

Material description	PTFE filled Bronze, PTFE filled carbon fiber and MoS2, PTFE filled Graphite, PTFE filled PI, PTFE filled Ekonol, and so on
Available Color	Black, green, coffee, gold and so on
Material Strength	This packing has low frictional resistance, which eliminates stick slip and assures high wear resistance. It’s a standard combination seal and can be used for a wide range of operations.
Temperature	-30~+160℃
Speed	≤1.50m/s
Pressure	≤35MPa
Applied device	Mobile Hydraulic equipment / standard cylinder / Presses/excavators

Data
	Pressure		Temperature	Sliding speed		Medium
Standard	≤35 MPa		-30…+160 ℃	≤1.5 m/s		Minderal oil based hydraulic fluids, barely flammable hydraulic fluids,water,air and others.
Material
		O ring	slide ring
Standard		NBR	PTFE-Bronze
Standard (on request)		FKM	PTFE-carbon
pressure			160bar		250bar		400bar
Max Gap E			E≤0.6mm		E≤0.4mm		E≤0.2mm

SPNO Rod Seal Leakproof
