    SPGO Hydraulic Piston Seals

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : SPGO piston seal
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,
    Supply Ability : 550 Pcs Per Week.
    Delivery Time : 3-7 Days After Payment Received(Public Holiday Excluded)
    MOQ : 100 pcs
    • Product Details
    • Company Profile

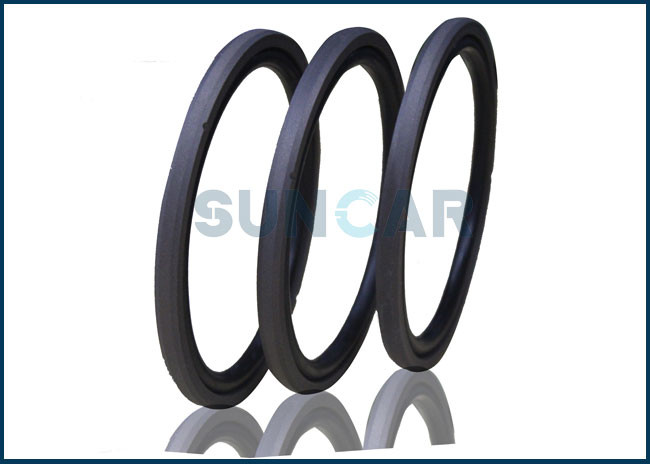

    SPGO Hydraulic Piston Seals

    SPGO Hydraulic Piston Seals


    Description:SPGO is a type of piston seal.Oil cylinder is composed of cylinder block, piston, piston rod, cylinder head and sealing ring.Piston seal refers to the seal between the cylinder and the piston. If the seal is not good, the performance of the cylinder will be affected. The seal groove is opened on the piston,it is installed on the piston, the main function is to seal the gap between the piston and the cylinder, and prevent hydraulic oil from leaking. The piston seal is the main seal in the hydraulic cylinder, bearing pressure in both directions, and is one of the most important seals that the hydraulic cylinder can withstand the pressure value. The main requirements for piston sealing are good sealing effect, good pressure holding effect under static state, strong pressure bearing capacity during movement, anti-extrusion, low friction coefficient, long service life, etc.

    dDhφdφDHC
    1420314203.22
    19251925
    21.5303.821.53043.5
    2331.52331.5
    23.53223.532
    26.53526.535
    2735.52735.5
    31.54031.540
    36.54536.545
    41.55041.5504
    44.55344.553
    46.55546.555
    47.55647.556
    51.56051.560
    49636.349636.5
    51655165
    567056705
    57715771
    61756175
    66806680
    71857185
    76907690
    81958195
    8610086100
    9110591105
    9611096110
    98112981126.5
    101115101115
    106120106120
    111125111125
    116130116130
    121135121135
    126140126140
    136150136150
    146160146160
    1501709.815017010
    160180160180
    170190170190
    180200180200
    190210190210
    200220200220
    204224204224
    210230210230
    220240220240
    230250230250
    2402602402607.5
    250270250270
    260280260280
    270290270290
    280300280300
    290310290310
    300320300320
    320340320340
    330350330350
    340360340360
    355375355375
    360380360380
    380400380400

    SUNCAR SPGO Part Numbers:


    GS1800V0GS1817V0GS1831V0
    GS1801V0GS1818V0GS1832V0
    GS1802V0GS1819V0GS1833V0
    GS1803V0GS1820V0GS1834V0
    GS1804V0GS1821V0GS1835V0
    GS1805V0GS1822V0GS1836V0
    GS1806V0GS1823V0GS1837V0
    GS1807V0GS1824V0GS1838V0
    GS1808V0GS1825V0GS1839V0
    GS1809V0GS1826V0GS1840V0
    GS1810V0GS1827V0GS1841V0
    GS1811V0GS1828V0GS1842V0
    GS1812V0GS1829V0GS1843V0
    GS1813V0GS1830V0GS1844V0
    GS1814V0GS1849V0GS1845V0
    GS1815V0GS1850V0GS1846V0
    GS1816V0GS1851V0GS1847V0
    GS1853V0GS1852V0GS1848V0
    GS1854V0GS1856V0
    GS1855V0GS1857V0

    SPGO Data:

    MaterialPower-transmission fluidTemperatureSpeedPressureMax. Gap F
    PTFE+bronzeMineral Oil(NBR)-30 – +110≦ 15 m/s160 barF ≦ 0.6 mm
    Mineral Oil(FPM)-30 – +200250 barF ≦ 0.4 mm
    400 abrF ≦ 0.2 mm

    Chamfers & Rod (mm)ToleranceSurface Finishing
    μm Raμm Rt
    S ≦3.755.57.510.512.515ØD1H90.1-0.4≦ 4
    C ≧2357.588.5Ød1h9≦ 1.6≦ 10
    r1 ≦0.40.81.21.61.62.0L+0.2 -0≦ 3.2≦ 16
