    SPNC High Pressure Rod Seal

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : SPNC Type Piston Rod Seal
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,
    Supply Ability : 550 Sets Per Week.
    Delivery Time : 3-7 days after payment received(Public Holiday Excluded)
    MOQ : Accept trial order
    • Product Details
    • Company Profile

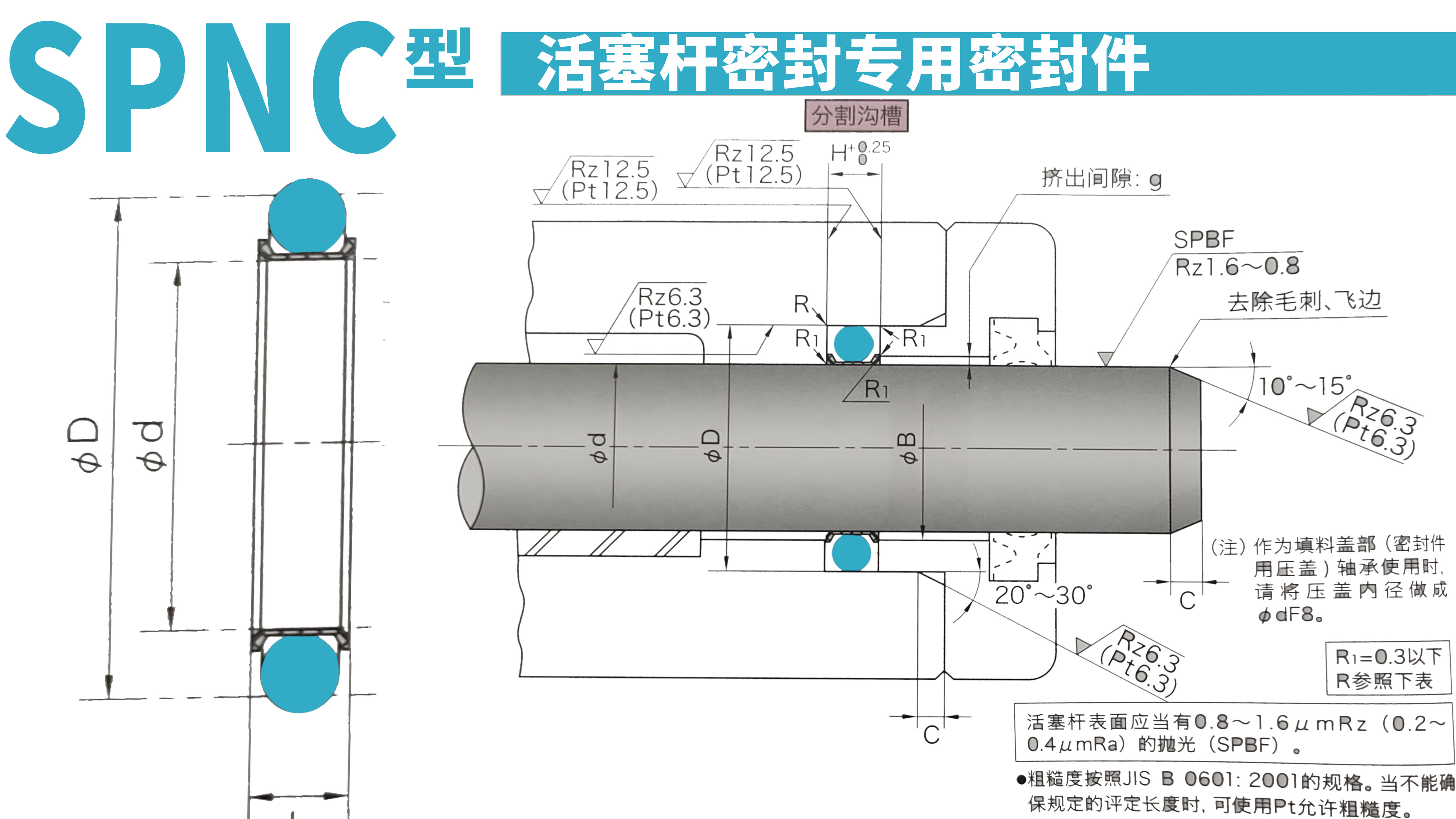

    SPNC High Pressure Rod Seal

    SPNC High Pressure Rod Seal


    Details:


    SPNC seals are especially suitable for controlling cylinder servo systems, machine tools, cylinder quick response and construction equipment, and two-way piston rod cylinders. This filler has low frictional resistance, which eliminates stick-slip and ensures high wear resistance. When the service range of stress is used, wide and fast sliding speed.


    SPN’s sealing ring has high chemical resistance and corrosion resistance. O-rings and sealing rings of different materials can be used. SPN sealing ring can be applied to almost all media. Since the special shape of the sealing structure has good film properties, it can be returned to the oil.


    Product Information:


    Product NameSPNC rod seals
    BrandSUNCAR
    CertifiC-A-TionISO9001
    SizeStandard size or custom Size
    ColorStandard colour
    MaterialsHNBR NBR RUBBER FKM OR CUSTOMIZE
    Hardness50-90 shore A
    Pressure0~0.05Mpa
    Temperature-35~220 Degree
    FeatureOil-resistant, heat resistant,Durable
    AppliC-A-TionKomatsu Excavator
    MOQ10 pieces
    Delivery Time2-5 Days
    PackingPP bag, Carton, Wooden CNH, or as Required
    Related brandsKomatsu,Hitachi,Sumitomo,Doosan,Daewoo,Hyundai,C-A-T, SUNCARSUNCARSUNCARSUNCARVOLVO,KATO,SAMSUNG,LIEBHERR,MITSUBISHI and more.

    Sizes Details:


    Product NO.SizeProduct no.Size
    SPNC-33*6*2.3SPNC-3030*36*4.4
    SPNC-44*7*2.3SPNC-3131*37*4.4
    SPNC-55*8*2.3SPNC-31.531.5*37.5*4.4
    SPNC-66*9*2.3SPNC-3232*38*4.4
    SPNC-77*10*2.3SPNC-3434*40*4.4
    SPNC-88*11*2.3SPNC-3535*41*4.4
    SPNC-99*12*2.3SPNC-35.535.5*41.5*4.4
    SPNC-1010*13*2.3SPNC-3636*42*4.4
    SPNC-10A10*14*3SPNC-3838*44*4.4
    SPNC-1111*15*3SPNC-3939*45*4.4
    SPNC-11.211.2*15.2*3SPNC-4040*46*4.4
    SPNC-1212*16*3SPNC-4141*47*4.4
    SPNC-12.512.5*16.5*3SPNC-4242*48*4.4
    SPNC-1414*18*3SPNC-4444*50*4.4
    SPNC-1515*19*3SPNC-4545*51*4.4
    SPNC-1616*20*3SPNC-4646*52*4.4
    SPNC-1818*22*3SPNC-4848*54*4.4
    SPNC-2020*24*3SPNC-4949*55*4.4
    SPNC-2121*25*3SPNC-5050*56*4.4
    SPNC-2222*26*3SPNC-48A48*58*7
    SPNC-22A22*28*4.4SPNC-50A50*60*7
    SPNC-22.422.4*28.4*4.4SPNC-5252*62*7
    SPNC-2424*30*4.4SPNC-5353*63*7
    SPNC-2525*31*4.4SPNC-5555*65*7
    SPNC-25.525.5*31.5*4.4SPNC-5656*66*7
    SPNC-2626*32*4.4SPNC-5858*68*7
    SPNC-2828*33*4.4SPNC-6060*70*7
    SPNC-2929*35*4.4SPNC-6262*72*7
    SPNC-29.529.5*35.5*4.4SPNC-6363*73*7
    SPNC-6767*77*7SPNC-6565*75*7
    SPNC-7070*80*7SPNC-190190*205*10.5
    SPNC-7171*81*7SPNC-195195*210*10.5
    SPNC-7575*85*7SPNC-200200*215*10.5
    SPNC-8080*90*7SPNC-205205*220*10.5
    SPNC-8585*95*7SPNC-209209*224*10.5
    SPNC-9090*100*7SPNC-210210*225*10.5
    SPNC-9595*105*7SPNC-215215*230*10.5
    SPNC-100100*110*7SPNC-220220*235*10.5
    SPNC-102102*112*7SPNC-225225*240*10.5
    SPNC-105105*115*7SPNC-230230*245*10.5
    SPNC-110110*120*7SPNC-235235*250*10.5
    SPNC-112112*122*7SPNC-240240*255*10.5
    SPNC-115115*125*7SPNC-245245*260*10.5
    SPNC-120120*130*7SPNC-250250*265*10.5
    SPNC-125125*135*7SPNC-255255*270*10.5
    SPNC-130130*140*7SPNC-260260*275*10.5
    SPNC-132132*142*7SPNC-265265*280*10.5
    SPNC-135135*145*7SPNC-270270*285*10.5
    SPNC-140140*150*7SPNC-275275*290*10.5
    SPNC-145145*155*7SPNC-280280*295*10.5
    SPNC-150150*160*7SPNC-285285*300*10.5
    SPNC-150A150*165*10.5SPNC-290290*305*10.5
    SPNC-155155*170*10.5SPNC-295295*310*10.5
    SPNC-160160*175*10.5SPNC-300300*315*10.5
    SPNC-165165*180*10.5SPNC-315315*330*10.5
    SPNC-170170*185*10.5SPNC-320320*335*10.5
    SPNC-175175*190*10.5SPNC-335335*350*10.5
    SPNC-180180*195*10.5SPNC-340340*355*10.5
    SPNC-185185*200*10.5SPNC-355355*370*10.5
    SPNC-375375*390*10.5SPNC-360360*375*10.5
    SPNC-385385*400*10.5

    Some OEM Number Here For Your Reference:


    FU0984K0FU0984K2096-1567961567350-09573500957154-0730
    FU1024K0FU1024K3154-07501540750105-25771052577350-0958
    FU1051K0FU1051K2259-06532590653350-09593500959FU0357R0
    CU0857N2CU0857N3CU0857N4CU0984N1CU0984N3FU0424R1FU0424R2
    CU1024N3CU1024N5CU1051N2CU1051N5CU1051N7FU0451R0FU0451R1
    CU1082N3CU1082N5CU1082N7CU1125N1CU1125N2FU0497R0FU0497R1
    CU1157N3CU11157N5CU1157N6CU1195N0CU1195N1FU1051R0FU1051R1
    CU1220N3CU1220N2CU1252N3CU1252N5CU2264N2CU2264N0FU1082R0
    CU3494N1CU3494N0CU3494N2CU1483N2CU1483N3CU3640N0FU1280R1
    CU3630N0CU3630N1CU3335N1CU3640N0CU0694N3CU0694N5FU1252R0
    20G-30-K2290GS2310V031E6-4050031Q6-4096031N6-40990K9001016GS2042F0
    GS2043F0GS2044F0GS2045F0GS2046F0GS2048F0GS2049F0GS2050F0
    GS2055F0GS2056F0GS2057F0GS2058F0GS2059F0GS2060F0GS2066F0
    GS2069F0GS2070F0GS2071F0GS2072F0GS2073F0GS2074F0GS2080F0
    GS2082F0GS2083F0GS2085F0GS2086F0GS2087F0GS2088F0GS2090F0
