    JA2M5017A Plug Valve Pusher For Doosan Remote Control Valve S80GOLD

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : JA2M-5017A valve pusher
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,
    Supply Ability : 550 Sets Per Week.
    Delivery Time : 3-7 days after payment received(Public Holiday Excluded)
    MOQ : 10 sets
    • Product Details
    • Company Profile

    JA2M5017A Plug Valve Pusher For Doosan Remote Control Valve S80GOLD

    JA2M5017A Plug Valve Pusher For Doosan Remote Control Valve S80GOLD


    Valve pusher tool used for fitting a snap -in motor cycle and scooter tubeless valve onto the rim. The fitment is done by using the tool to push the rear of the valve into the rim hole until it 'snaps' into place.


    Product nameJA2M5017A Plug Valve Pusher For Doosan Remote Control Valve S80GOLD
    Brand nameSUNCAR
    OEM numberJS2M-5017A
    Loading portHuangpu port,China
    AvailabilityIn stock
    Terms of paymentsWestern Union, L/C, T/T, Money Gram, Paypal
    Original placeGuangdong provice,China
    Delivery time3-5 days after payment received(public holiday excluded)
    Condition100% New
    AppliC-A-TionS80GOLD

    Other Related Products Part Number For Your Reference:


    PART NO.PART NAME
    420-00342BREMOTE CONTROL VALVE(LH)
    420-00343BREMOTE CONTROL VALVE(RH)
    J95C1001CNH
    J96C2001CONNECTOR
    JA2M5014STOPPER(1.3)
    JA0D3004SPRING
    JA2M5015ROD,PUSH
    JA0D3006SPRING(2.4)
    P0020O-RING
    WPT18PLUG

    Feature:


    1) Excellent durability and flexibility in using.
    2) Specially designed cords enhance durability and length stability.
    3) Excellent in resistance against heat,oil and wear.
    4) Show stable in high speed rotation.
    5) Resistant to heat, oil, fatigue, aging and friction due to excellent and special frame.
    6) Large power, high speed, long service life, small distortion, less space occupying.

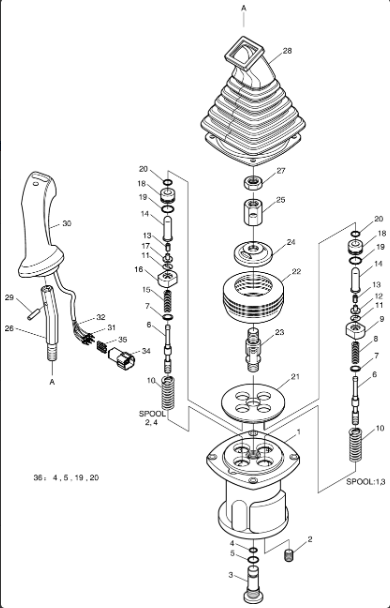

    Relative Parts:


    Pos.Part NoQtyParts name
    -.420-00342B[1]REMOTE CONTROL VALVE(L.H)
    -.420-00343B[1]REMOTE CONTROL VALVE(R.H)
    1J95C1001[1]CNH
    10J96C2001[4]CONNECTOR
    11JA0D3003[4]STOPPER
    12JA2M5014[2]STOPPER(1.3)
    13JA0D3004[4]SPRING
    14JA2M5015[4]ROD;PUSH
    15JA0D3006[2]SPRING(2.4)
    16JA0D3007[2]SEAT;SPRING(2.4)
    17JA2M5016[2]STOPPER(2.4)
    18JA2M5017A[4]PLUG
    19PO020[4]O-RING
    2WPT18[4]PLUG
    20C1-1008[4]SEAL;ROD
    21J95C1010[1]PLATE
    22J95C1011[1]BUSHING
    23J95C1012[1]JOINT ASSY
    24J97A5016[1]SWASH PLATE
    25J95C1014[1]NUT;HEX.
    26JA1D2001[1]BAR;HANDLE
    27HNM14[1]NUT;HEX.
    28JA1D2002[1]BOOT
    29SP0528[1]PIN;SPRING
    3J95C1002[1]PLUG
    30JA5A2001[1]HANDLE ASSY(LH)
    30JA5A2002[1]HANDLE ASSY(RH)
    31*NA01264[5]TERMINAL
    32*NA01345[5]WIRE;SEAL
    33SWP6PT[1]HOUSING
    34SWP6P[1]HOLDER;REAR
    35J97A1003[10]BOOT(L.H)
    36J95C1034A[-]SEAL KIT
    4PO010A[1]O-RING
    5PO014[1]O-RING P14
    6J95C1003[4]SPOOL
    7J95C1004[4]SHIM
    8JA0D3001[2]SPRING(1.3)
    9JA0D3002[2]SEAT;SPRING(1.3)

    JA2M5017A Plug Valve Pusher For Doosan Remote Control Valve S80GOLD
