    2401-9082K 24019082K Travel Motor Seal Kit For DH220LC-3 DH220LC-7 DH225LC-7 DH258LC-V DH258LC-7

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : 2401-9082K 24019082K Travel motor seal kit
    Price : Negotiable
    Payment Terms : Paypal, T/T, Western Union,Bank transfer.
    Supply Ability : 550 Sets Per Week.
    Delivery Time : 3-7 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

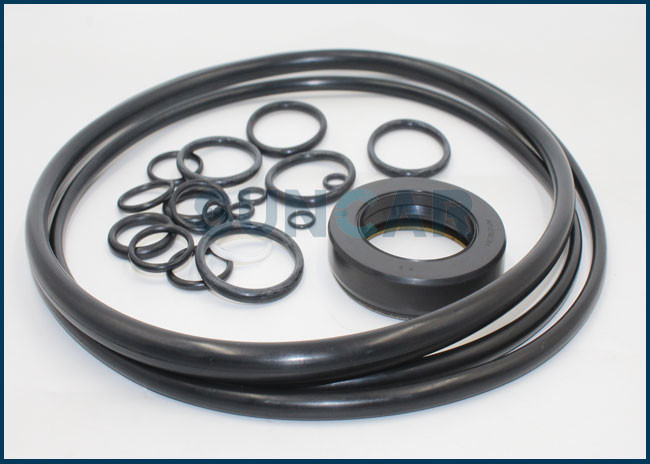

    2401-9082K 24019082K Travel Motor Seal Kit For DH220LC-3 DH220LC-7 DH225LC-7 DH258LC-V DH258LC-7

    2401-9082K Travel Motor Seal Kit For DH220LC-3 DH220LC-7 DH225LC-7 DH258LC-V DH258LC-7



    Description: Center joint seal kit.

    Product name2401-9082K Travel Motor Seal Kit For DH220LC-3 DH220LC-7 DH225LC-7 DH258LC-V DH258LC-7
    Brand nameSUNCAR
    OEM number2401-9082K
    24019082K
    MOQAccept trail order
    Compatible brandDOOSAN
    Supply alility550 sets per week
    Condition100 % new
    FeatureHigh temperature resistance,Sealing oil
    Temperature-35~+220°C(According to material)
    PaymentTT,Paypal,Western unoin,Alipay,Bank transfer
    Hardness20degree~95degree
    Pressure0~0.05Mpa
    Original placeGuangdong province,China
    AppliC-A-TionSwivel Joint/Center Joint
    Save notifiC-A-TionClose, dry, avoid the sun
    Transport modeAir, Sea, Express ( FedEx , UPS,DHL,TNT etc.)
    CertifiC-A-TionISO9001
    SizeStandard size or as per customer request
    AppliC-A-TionBuilding Material Shops, Machinery Repair Shops, Manufactury plant,Construction works
    Make upBack up ring,Bushing,O-Ring,Piston rod,Ball,U-Ring packin etc
    AvailabilityIn rich stock.
    Compatible modelDOOSAN DH130LC-V DH150LC-V DH300LC-7 DH330-3 SOLAR S130LC-V S140LC-V S300LC-7 S330-3
    StyleHydraulic seal kit;Center joint seal kit.

    Relative Part Numbers:


    Parts on Group:


    Pos.Part NoQtyParts name
    -.K1000681A[2]TRAVEL DEVICE
    RL.K9001812[1]REAR FLANGE ASS'Y
    RL1.K9001813[1]. KIT;REAR FLANGE
    201-[1].. FLANGE;REAR
    2231.424-00062[1].. SPOOL;MAIN
    RL2.1.416-00026[2]. STOPPER ASS'Y
    2941.416-00027[1].. STOPPER
    2951.424-00063[1].. SPOOL;MAIN
    2961.129-00018[1].. SPRING
    2971.114-00542[1].. WASHER
    298S6550100[1].. RING;SNAP
    2241.181-00059[2]. PLUG;FOR MAIN
    2281.131-00058[2]. SPRING;FOR MAIN
    279S8000321[2]. O-RING
    2261.181-00067[2]. PLUG;CHECK
    2271.420-00013[2]. VALVE;CHECK
    2301.129-00006[2]. SPRING;CHECK
    234S8002731[2]. O-RING
    2212181-1890D4[1]. PLUG ;RO
    238S8000181[1]. O-RING
    2522181-1116D2[4]. PLUG;PT1/4
    2442181-1116D1[1]. PLUG;PT1/8
    268S6250161[2]. BALL;STEEL
    2421.420-00014[1]. VALVE;REDUCING
    2721.427-00031[1]. SEAT;VALVE REDUCING
    2761.115-00141[1]. RING;REDUCING
    2751.131-00062[1]. SPRING;REDUCING V/V
    2181.427-00029[1]. VALVE;SEAT T-TYPE
    2191.420-00009[1]. VALVE;T-TYPE
    2201.131-00041[1]. SPRING;T-TYPE
    2221.115-00139[1]. RING;T-TYPE
    233S8000091[1]. O-RING
    263422-00031[1]. VALVE;TWO SPEED
    264K9001047[1]. PLUG
    265S8000111[1]. O-RING
    2661.131-00099[1]. SPRING;TWO SPEED
    241S5700891[2]. PIN;PARALLEL
    282S2221471[9]BOLT;SOCKET M16X2.0X40
    2971.415-00005[1]ORIFICE
    M.1.401-00011[1]MOTOR PART
    M1.1.441-00291[1]KIT;CYL'D BLOCK & PISTON
    1041.441-00292[1]. BLOCK;CYLINDER
    1101.114-00305[2]. WASHER
    1141.129-00019[1]. SPRING;FOR CYL'D
    145S6510700[1]. RING;SNAP
    M11.1.409-00231[1]. PISTON ASS'Y
    1051.409-00232[9].. PISTON
    1061.355-00011[9].. SHOE
    1511.109-00135[6]. ROLLER
    1071.412-00093[1]. PLATE;RETAINER
    1081.148-00016[1]. BALL;THRUST
    M2.K9001814[1]PISTON ASS'Y
    1611.409-00116[1]. PISTON
    1621.355-00012[1]. SHOE
    1631.131-00042[1]SPRING
    1021.405-00022[1]SHAFT;MAIN
    1031.412-00202[1]PLATE;SWASH
    1091.412-00203[1]PLATE;TIMING
    1151.412-00061[3]PLATE;FRICTION
    1161.412-00072[4]PLATE;MATING
    1121.409-00115[1]PISTON;PARKING
    1131.131-00055[9]SPRING;P/PISTON
    1321.180-00631[1]SEAL;OIL
    1491.109-00147[1]BEARING;BALL
    1501.109-00026[1]BEARING;BALL
    139S8002101[1]O-RING
    178S8011951[1]O-RING
    181S5701242[2]PIN
    1671.540-00006[2]PIVOT
    R-1.1.426-00024[2]RELIEF VALVE ASS'Y
    3011.429-00037[1].. SEAT
    3021.424-00064[1].. PLUNGER
    3031.424-00065[1].. ROD
    3041.409-00233[1].. PISTON
    3051.441-00295[1].. BODY
    3061.181-00154[1].. PLUG
    3071.129-00020[1].. SPRING
    3081.114-00543[1].. SHIM
    311S8060181[1].. RING;BACKUP
    9002401-9082K[1]SEAL KIT
