    LZ00452 Arm Cylinder Seal Repair Kit for CNH Excavators CX160

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : LZ00452 arm cylinder seal kit
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,
    Supply Ability : 550 Sets Per Week.
    Delivery Time : 3-7 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

    LZ00452 Arm Cylinder Seal Repair Kit for CNH Excavators CX160

    LZ00452 Arm Cylinder Seal Repair Kit for CNH Excavators CX160


    Description: LZ00452 seal kit for arm cylinder compatible for excavator CNH.


    Product nameLZ00452 Arm Cylinder Seal Repair Kit for CNH Excavators CX160
    BrandSUNCAR
    OEM NO.LZ00452
    Compatible modelsCNH CX160
    Feature

    Higher-toughness/Wear resistance/High&low temperature resistence

    FunctionPrevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power.
    MaterialPU, Rubber, PTFE, NBR, HNBR, ACM, VMQ
    Supply ability550 sets per week
    Transport mode

    By air, by sea, by express ( FedEx , UPS,DHL,TNT etc.)

    Original placeGuangdong province,China
    Loading portHuangpu port,China
    AvaliabilityIn stock

    CertifiC-A-Tion

    ISO9001
    Payment ways

    Western Union,T/T, Paypal,Bank transfer,Alipay

    Delivery details3-7 days after payment received(Public Holiday Excluded)
    Equipment typeLoaders, track loaders, slide pins, uni loaders, wheel loaders and more.
    MOQAccept trial order
    TypeArm cylinder seal kit
    AppliC-A-TionCNH Cylinder;Construction machinery spare parts resell store

    Standard or nonstandard

    Standard
    NotedItems are sold by part number only. Picture is for illustration purposes and the part or parts may be different in color or quantity.

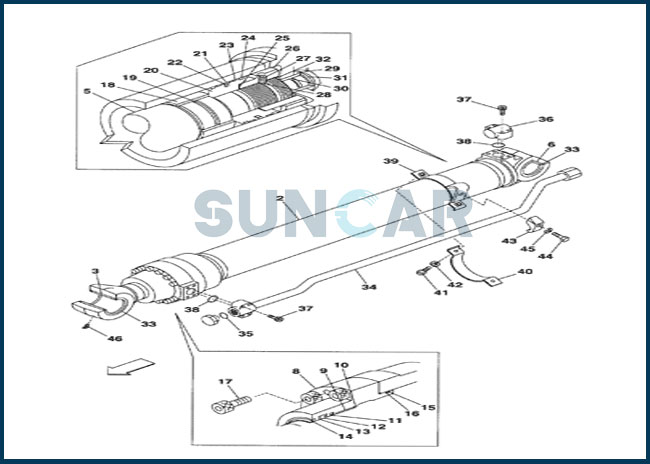

    Relative Parts:


    Pos.Part NoQtyParts name
    . .KLV0308[1]HYDRAULIC CYLINDER
    . .LR00692[1]HYD CYL SLEEVE
    2NSS[1]NOT SOLD SEPARAT
    3LB00656[1]BUSHING
    . .LB00657[1]PISTON ROD
    5NSS[1]NOT SOLD SEPARAT
    6LB00656[1]BUSHING
    . .LU002070[1]CYLINDER END CAP
    8NSS[1]NOT SOLD SEPARAT
    9160050A1[1]BUSHING
    10155713A1[1]RING, SNAP
    11LE00479[1]RING
    12158847A1[1]RING
    13155249A1[1]BACK-UP RING
    14161877A1[1]BACK-UP RING
    15154761A1[1]O-RING
    16155240A1[1]BACK-UP RING
    17161059A1[12]BOLT,Hex Skt
    18161878A1[1]BUSHING
    19LE00707[1]RING
    20160570A1[1]PISTON
    21155311A1[1]SEALING RING
    22160509A1[2]BACK-UP RING
    23LE00708[2]SCRAPER RING
    24155306A1[2]SEALING RING
    25155737A1[1]SHIM
    26LA00711[1]NUT
    27156223A1[1]SET SCREW
    28155977A1[1]BALL
    29161879A1[1]RING
    30LE00690[1]SEAL
    31160556A1[2]STOP
    32161926A1[1]RING, SNAP
    33160483A1[4]BACK-UP RING
    34LR00694[1]TUBE ASSY.
    35154503A1[1]O-RING
    36161893A1[1]JOINT
    37160301A1[8]BOLT
    38154543A1[2]O-RING
    39LD00066[1]CLAMP BRACKET
    40156374A1[1]MOUNTING CLIP
    41158131A1[2]BOLT,High Strength
    42156227A1[2]WASHER
    43155717A1[1]COLLAR
    44827-12050[1]BOLT,Hex
    45892-10012[1]LOCK WASHER
    46153912A1[1]LUBE NIPPLE
    . .LZ00452[1]SEAL KIT
