    CA3J4460 3J-4460 3J4460 Dust Seal Type A-Single lip wiper ring for C-A-T

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : CA3J4460 3J-4460 3J4460 Dust seal
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,
    Supply Ability : 550 Pcs Per Week.
    Delivery Time : 3-7 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

    CA3J4460 3J-4460 3J4460 Dust Seal Type A-Single lip wiper ring for C-A-T

    CA3J4460 3J-4460 3J4460 Dust Seal Type A-Single lip wiper ring for C-A-T


    Description:


    Seal shape: Type A-Single lip wiper ring


    Prevent external contaminants from entering the system. The single-lip (lip refers to the protruding part or edge of the seal) wiper ring cleans the


    connecting rod when it is retracted. The double-lip dust wiper cleans and seals the oil when the connecting rod is retracted to eliminate the


    phenomenon of "oil leakage" (external leakage). The double-lip wiper ring is retained by the bearing fixture. These polyurethane scrapers have


    metal on the outside to increase strength. They are often called "sealed" wiper rings (covered with metal) or "J"-shaped wiper rings (the metal is


    usually "J"-shaped when viewed in cross section).


    Products Details :


    Product nameCA3J4460 3J-4460 3J4460 Dust Seal Type A-Single lip wiper ring for C-A-T
    Part numberCA3J4460 3J-4460 3J4460
    Fit brandC-A-T
    SectionStarting and electrical system
    Material

    Polyurethane rubber

    Hardness90 degree
    Place originalGuangzhou,China
    Loading portHuangpu port,China
    FeaturesWide range use,seal oil performance;high temp. resistance/low temp. resistance
    PaymentL/C, D/A, D/P, T/T, Western Union,
    StyleSeal ring
    MediumHydraulic oil, flame retardant liquid, water and others
    TypeHydraulic seal ring
    Fit equipment modelWheel Scraper 657 657B 657E C-A-T
    SizeStandard size

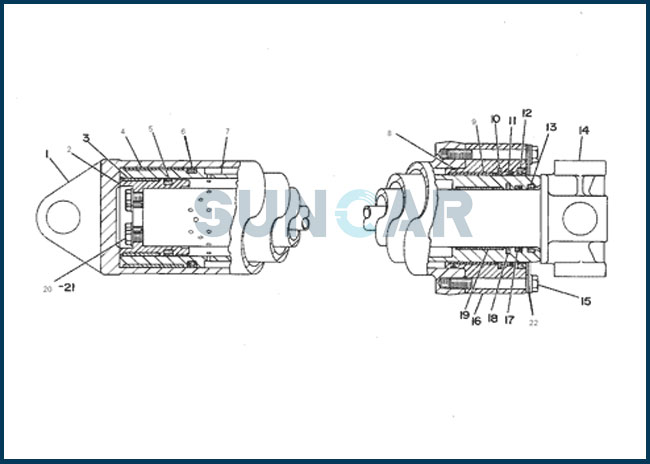

    Relative Parts:


    Pos.Part NoQtyParts name
    13G-8826[1]CYLINDER AS
    23G-8508[1]PISTON
    34T-6930 C[1]RING-WEAR
    44T-6932 C[1]RING-WEAR
    54T-4144[1]SEAL AS
    68J-5644[1]SEAL AS
    5J-7014[1]SEAL
    73G-8825[1]CYLINDER AS
    83J-0634[1]SEAL-O-RING
    3J-9742[1]RING-BACKUP
    94T-6931 C[1]RING-WEAR
    103G-8506[1]SEAL-RING
    113G-4627[1]SEAL-U-CUP
    123J-4460[1]SEAL-LIP TYPE
    133G-8505[1]WIPER-ROD
    143G-8824[1]ROD AS
    9S-8003[2]PLUG (1/2-20-THD)
    1J-9671[2]SEAL-O-RING
    151D-4616 C[6]BOLT (3/4-10X6-IN)
    5P-8248 C[12]WASHER-HARD (20X36.5X3.5-MM THK)
    163G-8503[1]HEAD
    176J-1450[1]SEAL-U-CUP
    183G-8507[1]SEAL-RING
    194T-6929 C[1]RING-WEAR
    201A-1135[6]BOLT (5/8-11X2-IN)
    215P-8247 C[6]WASHER-HARD (17X32X3.5-MM THK)
    223J-4463 C[3]RETAINER
    CCHANGE FROM PREVIOUS TYPE
    RREMANUFACTURED PART MAY BE AVAILABLE
