    DBM Hydraulic Piston Seal Double Acting Compact Seal For Cylinder

    Ask Lasest Price
    Brand Name : SUNCAR
    Model Number : DBM Piston seal
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union,
    Supply Ability : 550 Sets Per Week.
    Delivery Time : 3-7 Days After Payment Received(Public Holiday Excluded)
    • Product Details
    • Company Profile

    DBM Hydraulic Piston Seal Double Acting Compact Seal For Cylinder


    DSM High Pressures Piston Seal Use For Hydraulic Pump Cylinder And Valve


    Detailed Product Description

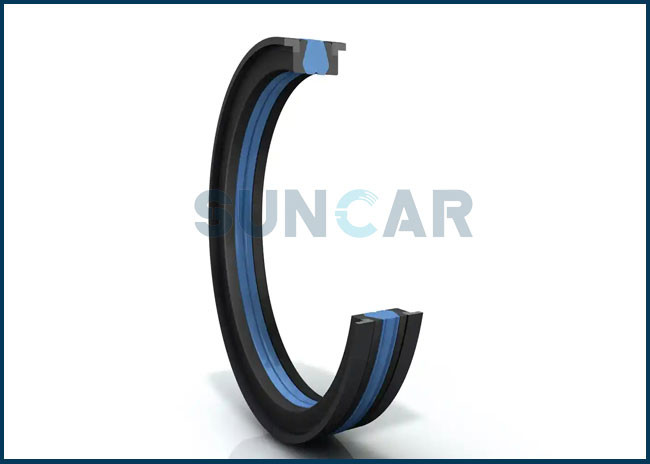

    Hydraulic Piston Compact Seal (DBM)


    The Compact Seal is a double-acting seal and guide element comprising an elastomeric profile seal ring, two back-up rings and two


    guide rings. It's the recommended sealing element for double acting pistons of hydraulic components such as machine tools, truck


    cranes, forklifts & handling machinery, agriculture equipment and so on.


    Product nameDSM Piston Seal
    Brand nameSUNCAR
    MOQAccept trial order
    Material

    Material: Profile seal: NBR

    MaterialBack-up Ring: Polyester elastomer
    MaterialGuide rings: POM
    MediumHydraulic oils, mineral hydraulic oils, water and water / glycol emulsion.
    Condition100 % new,brandnew
    Consist of

    A double-acting seal and guide element comprising an elastomeric profile seal ring, two back-up rings and two guide rings.

    Feature

    High temperature, low temperature, high pressure, low pressure,

    friction resistance

    Transport modeAir, Sea, Express ( FedEx , UPS,DHL,TNT etc.)
    CertifiC-A-TionISO9001
    MarketNorth America, South America, Western Europe, Eastern Europe, Eastern Asia, Southeast Asia, Middle East, Africa, Oceania, Worldwide
    Working temperatureHigh temperature resistant
    Size specifiC-A-TionStandard size
    AppliC-A-Tion

    Excavators,Repair store;Hydraulic seal resell store

    StockIn rich stock
    Style

    Hydraulic seal ; piston seal


    Operating Conditions


    Pressure: ≤50Mpa


    Temperature: -35~+110° C


    Speed: Maximum reciproC-A-Ting speed


    Media: Mineral oil-based hydraulic fluids,


    Flame retardant hydraulic fluids


    25*15*16.4/29.1150*125*25.4/44.4125*103*26.5/36.9
    30*17*15.4/28.1152.4*127*31.75/50.75130*105*25.4/44.4
    32*22*16.4/29.1155*130*25.4/44.4133*115*22.4/41.44
    35*25*16.4/29.1160*130*25.4/44.4135*110*25.4/44.4
    40*24*18.4/31.1160*135*25.4/44.4140*115*25.4/44.4
    40*26*15.5/20.7165*140*25.4/44.4140*118*26.5/36.7
    40*30*16.4/29.1170*145*25.4/50.8145*120*25.4/44.4
    45*29*18.4/31.1175*150*25.4/50.880*62*22.5/29.7
    45*35*16.4/29.1180*155*25.4/50.885*65*22.4/35.1
    50*34*18.4/31.1185*160*25.4/50.890*70*22.4/35.1
    50*34*20.5/26.7190*165*25.4/50.895*75*22.4/35.1
    55*39*18.4/31.1195*170*25.4/50.8100*75*22.4/35.1
    60*44*18.4/31.1200*175*25.4/50.8100*82*22.5/29.7
    60*44*20.5/26.7200*175*31.5/44.7105*80*22.4/35.1
    63*47*18.4/31.1210*185*25.4/50.8110*85*22.4/35.5
    63*47*20.5/26.7220*195*25.4/50.8115*90*22.4/35.1
    65*49*20.5/26.7230*205*25.4/50.8120*95*22.4/35.1
    65*50*18.4/31.1240*215*25.4/50.8125*100*25.4/38.1
    70*50*22.4/35.1250*225*25.4/50.880*60*22.4/35.1
    70*54*20.5/26.775*55*22.4/35.1

    Part Numbers:


    DBM 098059DBM 295216
    DBM 118066DBM 314236
    DBM 125086DBM 314244/M
    DBM 137098DBM 334255
    DBM 157094DBM 354275
    DBM 157102/MDBM 374295
    DBM 157118DBM 393295
    DBM 177114DBM 393332/M
    DBM 177137DBM 413314
    DBM 196133DBM 433334
    DBM 196133/MDBM 452354
    DBM 216153DBM 472374
    DBM 236173DBM 492393
    DBM 236173/MDBM 492405/M
    DBM 248185DBM 511413
    DBM 248185/MDBM 523452
    DBM 255192/MDBM 531433
    DBM 255196DBM 551452
    DBM 275196DBM 551464/M
    DBM 275212/MDBM 570472
    DBM 748649DBM 590492
    DBM 767669DBM 600500
    DBM 787688DBM 610511
    DBM 787688/MDBM 629511
    DBM 826728DBM 629531
    DBM 866767DBM 649551
    DBM 905807DBM 669570
    DBM 944846DBM 688590
    DBM 984886DBM 708610
    DBM 728629
